ACER 5742 laptop screen moves over to extended screen Cant bring it back onto laptop

Options
maggieglanville
maggieglanville Member Posts: 3 New User

Windows 10 64 bit Intel Core i5 M460 4 gig ram 1Tb SSD

Fresh Install Window !0 64-bit On New 1Tb SSD Drive

All Drivers In Device Man

Updated As Of Today

Passed SFC

When extended to second screen the laptop desktop shows on 2nd screen

I've tried all the usual things and most ideas from the internet

but cant get the laptop desktop back to the laptop

Any Advice would be apricated

Don't really want to re install windows again would take forever to load

the VDJ and

all the karaoke and music Again

Many Thank

Maggie

Answers

  • StevenGen
    StevenGen ACE Posts: 14,956 Trailblazer
    edited 12:43AM

    Do a Hard Reset, as its probably an EC or Chipset chip freezing issue that needs resetting properly first that will and could reengage the main screen of your Aspire 5742 laptop, so try that, as the laptops screen should work when you disconnect the external 2nd monitor screen. Otherwise you could have a faulty LCD cable or screen, so you need to look at those hardware components that I've included below.

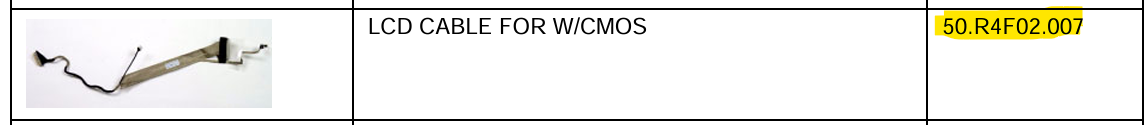

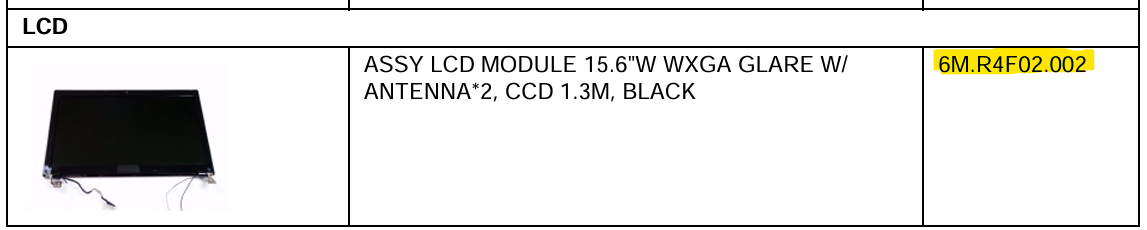

    Have a look at these hardware components if the hard reset doesn't work, as this laptop is like 15 years since it was released and these hardware components could be faulty.

    image.png image.png

    Hard Reset - Remove the battery and press the power key for 15 seconds to release all power from the laptop, then undo the HDD and RAM door and take the RAM out and then take the ODD/DVD out, then take the RTC/BIOS battery out and short the battery case +&- pins at the board socket to reset CMOS

    Short the +&- pins at this plug to reset CMOS with metal tweezers or screwdriver.

    Screenshot 2025-07-28 102933.jpg

    Leave the laptop like that for at least 30 to 60min so that EC and Chipset chips reset completely and then reconnect everything, if you have 2x ram modules, only connect 1x ram module and alternate the two ram modules and see the laptops screen reengages properly.

    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍
