Veriton N4620G has 2nd Hard Drive port, what power/cables do I use?

Options
Jorge_Ferrix
Jorge_Ferrix Member Posts: 1 Newbie

I have a veriton N4620G and I noticed that it has connectors for a second hard drive but I can't figure out what cables to use.

Thanks in advance

Answers

  • StevenGen
    StevenGen ACE Posts: 14,920 Trailblazer

    The Veriton N4620G desktop computer does not have a space for a 2nd HDD its got an ODD CD/DVD drive space which its data/power slot SATA III type and connected with a SATA cable like shown below, the ODD is also secured with a special bracket on the other side of the mainboard, if you want a 2nd HDD, you will need to see if there is a 2.5" caddy for this model to fit where the ODD drive is or use another way of securing a 2nd HDD instead of the ODD drive. Good lucak and hope this helps you out.

    image.png image.png

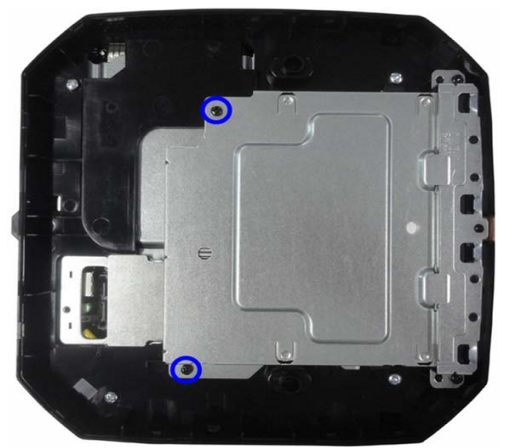

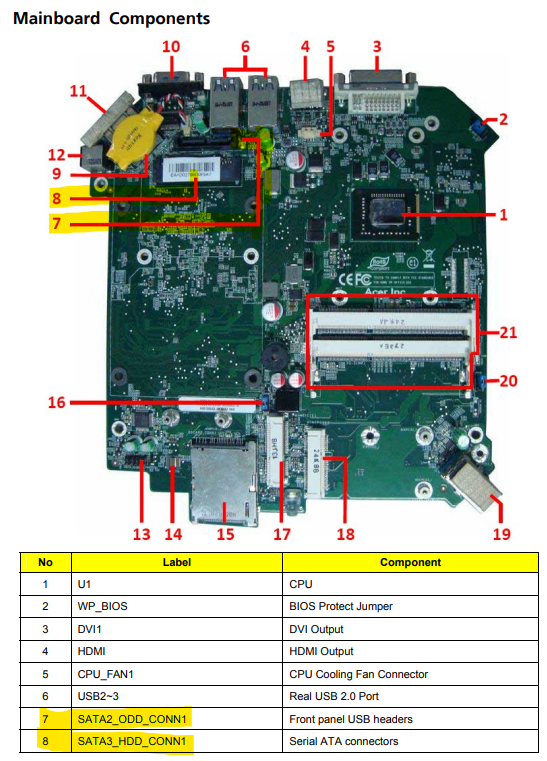

    All these components are underneath the desktop unit maked in red below

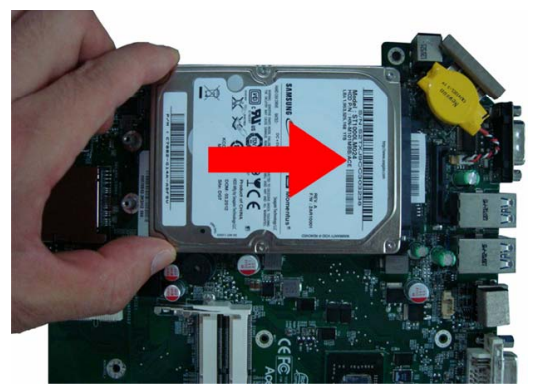

    SATA III HDD position slot is a data ands power plug

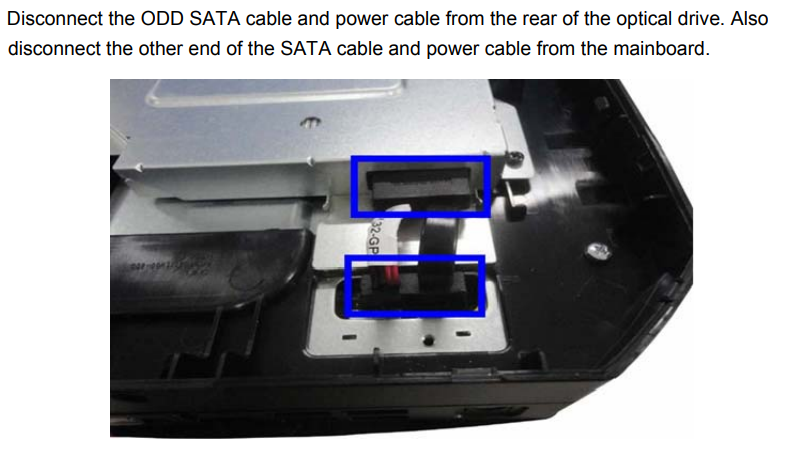

    ODD Drive is a SATA III data/power plug and its connected with the SATA cable below and its position is on the other side of the board to the HDD.

    image.png image.png

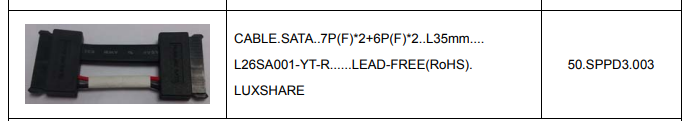

    SATA ODD cable


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍
