Can I install a Samsung 990 Pro SSD with a heatsink on an ACER NITRO N50-650 desktop?

Options
Ttsss
Ttsss Member Posts: 1 Newbie

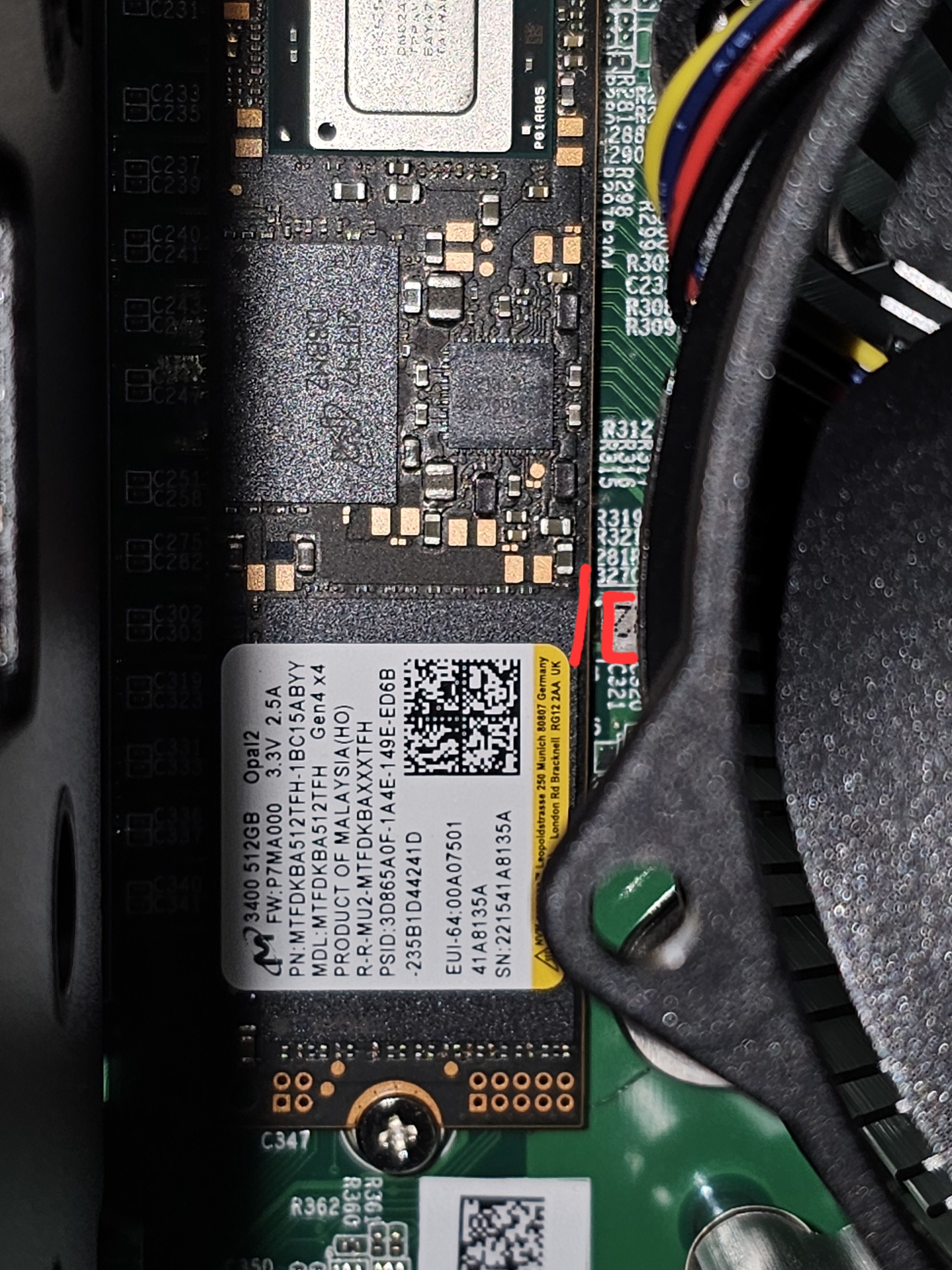

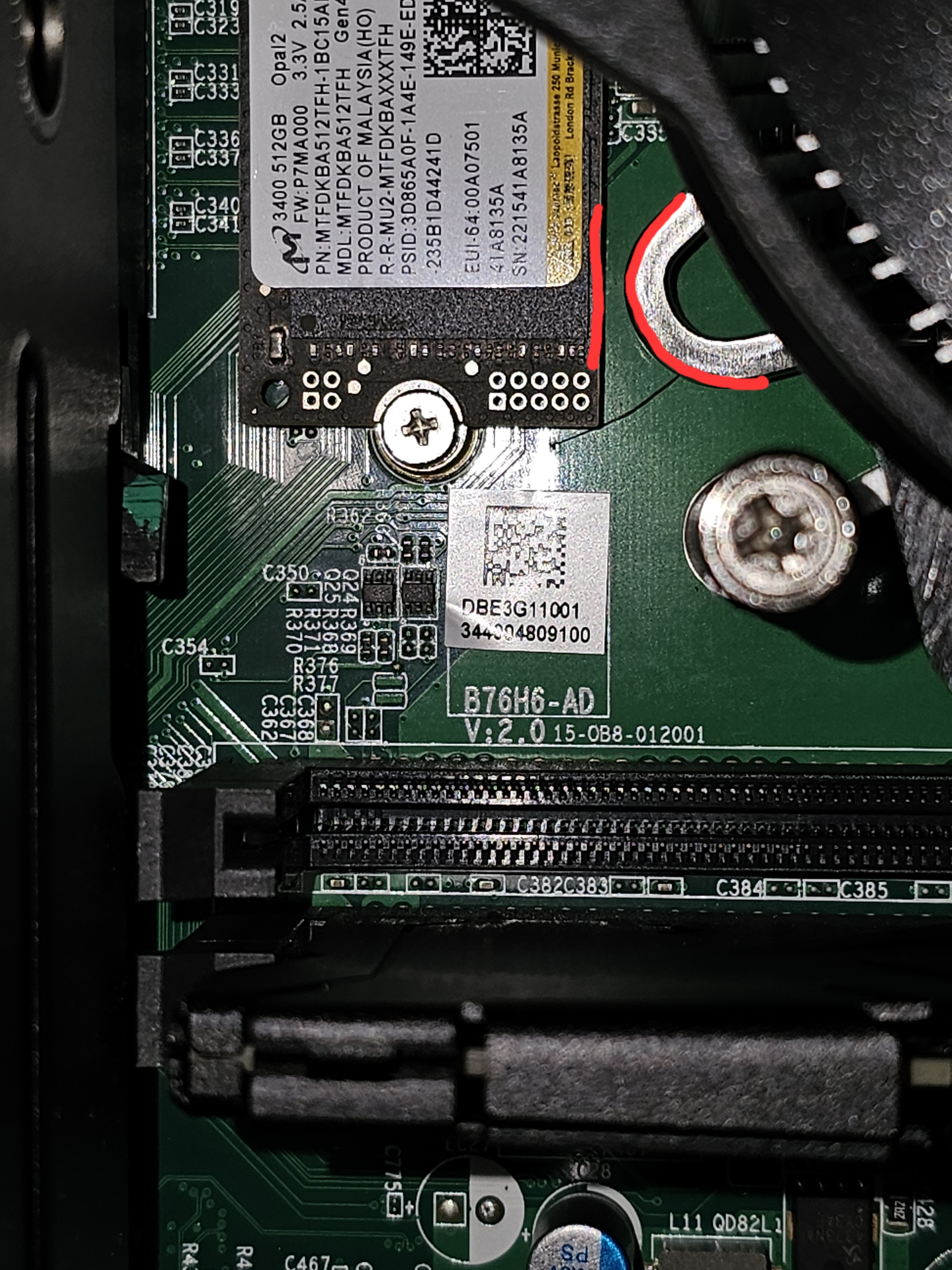

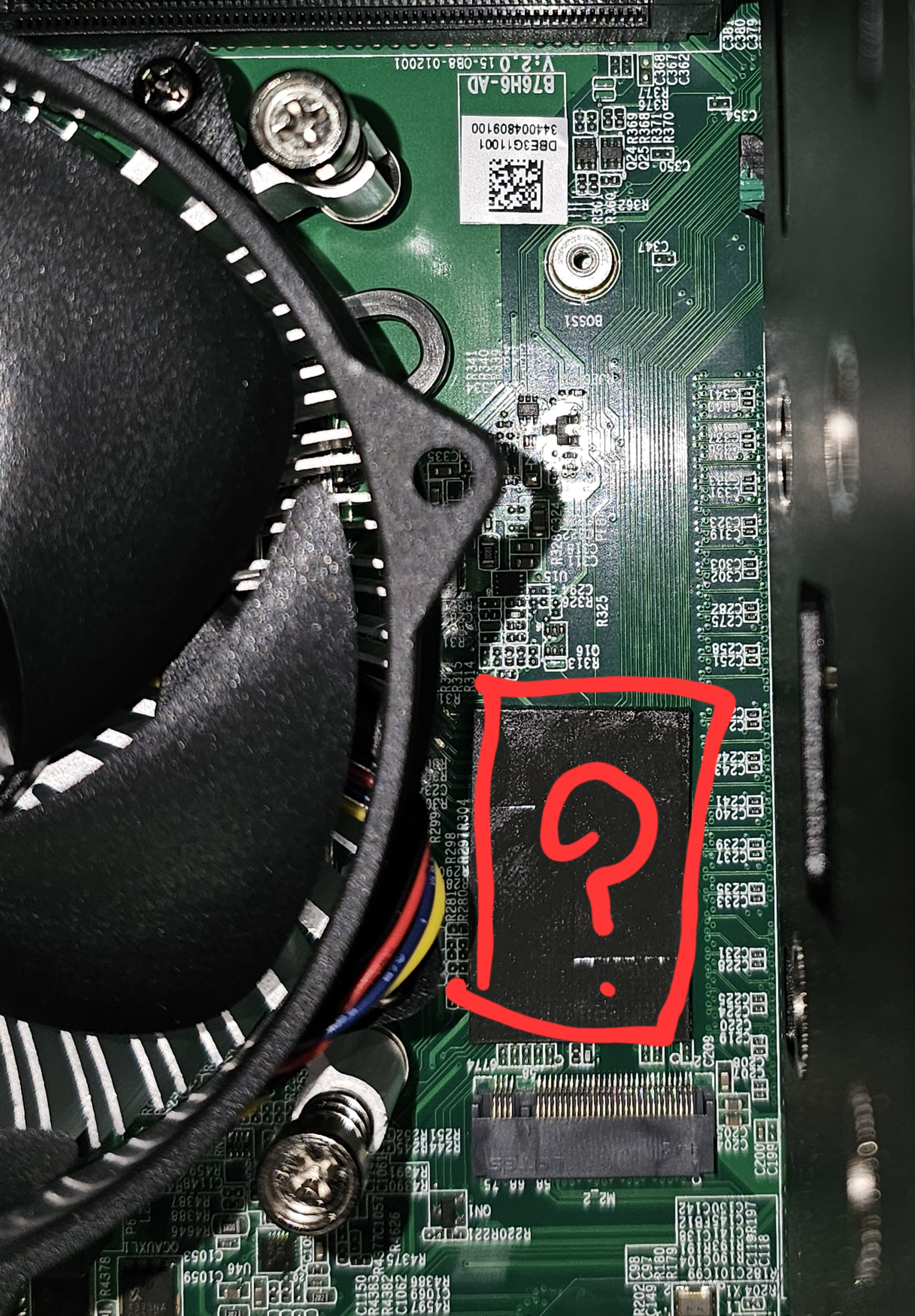

The main M.2 4x4 socket is located very close to the CPU socket lever, severely limiting side clearance. Has anyone attempted this installation ? or other pre-install heatsink SSD M.2?

Answers

  • StevenGen
    StevenGen ACE Posts: 14,755 Trailblazer

    The #19 in the mainboard layout of the N50-650 desktop below which is a Gen 4 x4 slot next to the cpu and its heatsink/fan, you will definitely be able to fit the Samsung 990 Pro with Heatsink into that M.2 slot, as the Samsung M.2 and its heatsink have a very low profile at its sides and it tappers up gradually to the centre and it will clear the N50-650s cpu cooler and heatsink, as shown below. Btw, I'm using this same drive in my Predator Neo PHN16-71 and its fits into my laptop and its an excellent and very quick drive for m=normal use and gaming. Good luck and hope this helps you out.

    Samsung 990 Pro with Heatsink, fitted in a PHN16-71 laptop, showing where the actual heatsink starts

    image.png SAMSUNG 990 PRO WITH HEATSINK.png

    Nitro N50-650 mainboard layout


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍
