Removing C871-C85 LCD

fossej
fossej Member Posts: 9

Tinkerer

Damaged C871-C85 LCD seems to be taped to lid instead of screws holding it to lid.
How can the LCD be removed without damage to lid?

Answers

  • christy1
    christy1 Member Posts: 1,619 Community Aficionado WiFi Icon
  • fossej
    fossej Member Posts: 9

    Tinkerer

    The LCD in our model C871-C85K is not held in place with screws like the older model CBs use. The LCD is held in place by tape (pull tab) on either side of the LCD. Grasp the visible ends sticking out above the top of the LCD and pull to the side and down until the LCD is free.
  • christy1
    christy1 Member Posts: 1,619 Community Aficionado WiFi Icon
    fossej said:
    The LCD in our model C871-C85K is not held in place with screws like the older model CBs use. The LCD is held in place by tape (pull tab) on either side of the LCD. Grasp the visible ends sticking out above the top of the LCD and pull to the side and down until the LCD
     like this.

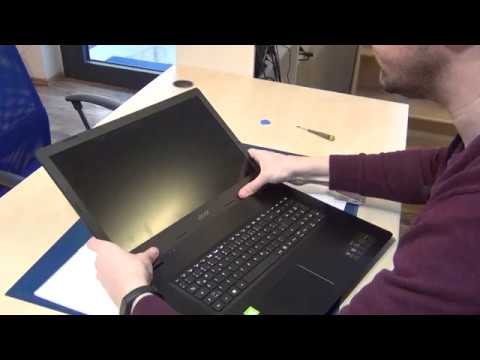

    https://youtu.be/4FbD1PWm5C4
    Accept if its Helpful.   B)
  • fossej
    fossej Member Posts: 9

    Tinkerer

    The video shows a model that has its LCD held in place with screws. The C871 has its LCD held in place by double-sided tape as shown in the previous answer. We ordered replacement LCDs but tape was not included.
  • billsey
    billsey ACE Posts: 34,672 Trailblazer
    Yes, the adhesive tape is a separate part number: 47.HQFN7.003. My guess is the tape is replaced more often than the display, so they have it on it's own number.
    Click on "Like" if you find my answer useful or click on "Yes" if it answers your question.
  • fossej
    fossej Member Posts: 9

    Tinkerer

    Thanks for the tape part number 47.HQFN7.003. Any idea on where I can get some?
  • billsey
    billsey ACE Posts: 34,672 Trailblazer
    If a search on that number doesn't have any hits you might try Acer support directly. If that doesn't help try and measure how thick it is and just use some double sticky of the same thickness cut to the same size.
    Click on "Like" if you find my answer useful or click on "Yes" if it answers your question.
