CocenptD 9 Pro - Upgrading Memory and Hard Disks

CoenBrasser
CoenBrasser Member Posts: 5

Tinkerer

edited February 2024 in 2020 Archives
So I want to buy a ConceptD 9 Pro, and I was looking into upgrading it a bit more to more fit my demands while traveling.

I would love to upgrade the memory with 2X32GB, but in the spec sheet, it says it has a limitation of 32GB.

Is that limitation there because the slots are already full, or is that a hard-wired restriction?

And if I can upgrade it with two new slices of RAM, which RAM would you advise on buying?

Also, I saw that it has two m2 slots, and the version in my country runs just one 1TB WD m2 SSD, could I just add any other m2 disk in the other slot?

I'm guessing it is an 80mm sized slot right?

To summarize, can I upgrade the RAM and HD's of the ConceptD 9 Pro and with which parts can I do that?

Best Answer

  • Commodore_1995#
    Commodore_1995# ACE Posts: 98,349 Trailblazer
    Answer ✓
    Is the correct model the CN917-71P? If this is the model, your processor can accept up to 128gb of ddr4 ram: https://ark.intel.com/content/www/br/en/ark/products/192990/intel-core-i9-9980hk-processor -16m-cache-up-to-5-00-ghz.html

    However, the limit accepted by the motherboard is up to 32gb, see:

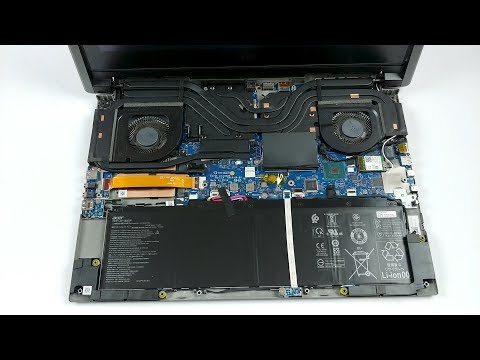

    This model contains only two ram slots:
    https://youtu.be/QPQ23WbT3cM
    On the ssd, one slot accepts only nvme and the other accepts both nvme and sata 3:

    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)

Answers

  • laurent_14
    laurent_14 ACE Posts: 10,381 Trailblazer
    Hello,
    CN917-71P ?
    France
  • Commodore_1995#
    Commodore_1995# ACE Posts: 98,349 Trailblazer
    Answer ✓
    Is the correct model the CN917-71P? If this is the model, your processor can accept up to 128gb of ddr4 ram: https://ark.intel.com/content/www/br/en/ark/products/192990/intel-core-i9-9980hk-processor -16m-cache-up-to-5-00-ghz.html

    However, the limit accepted by the motherboard is up to 32gb, see:

    This model contains only two ram slots:
    https://youtu.be/QPQ23WbT3cM
    On the ssd, one slot accepts only nvme and the other accepts both nvme and sata 3:

    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)
  • CoenBrasser
    CoenBrasser Member Posts: 5

    Tinkerer

    You are correct, it is the CN917-71P

    Just to be complete, this is the spec sheet from the Dutch Store site:



    Thanks for your answers! Really helpful.

    Guess I'm stuck with the memory then.

    What I don't yet completely understand is the storage, I see that you highlight the difference between the two storages, but I don't understand them?
    Is it safe to say that in the first storage is a 1TB
     PCI Express 3.0 x4 SSD, and could I place something like a 970 EVO Plus NVMe M.2 SSD 2TB in the second one? https://www.samsung.com/us/computing/memory-storage/solid-state-drives/ssd-970-evo-plus-nvme-m-2-2-tb-mz-v7s2t0b-am/





  • Commodore_1995#
    Commodore_1995# ACE Posts: 98,349 Trailblazer
    edited May 2020
    The slot that I marked in red, accepts ssd m2 2280 sata 3 and nvme. The other location accepts only ssd m2 2280 nvme.
    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)
  • billsey
    billsey ACE Posts: 35,323 Trailblazer
    You might have to take it out of RAID mode to use a second drive of a different size.
    Click on "Like" if you find my answer useful or click on "Yes" if it answers your question.
  • CoenBrasser
    CoenBrasser Member Posts: 5

    Tinkerer

    Thanks, it has been more than helpful and answers all my questions!
  • Risc
    Risc Member Posts: 2 New User
    Hey CorenBrasser!

    I just got the conceptd9 pro too and 1tb seemed a bit tight for my work files so I was thinking of doing this exact same upgrade. How'd it go for you? Besides for normal drive installation, was there anything special you had to do? Like log into BIOS and disable raid 0? Or did it all just pretty much plug and play like a normal drive (install it and then format it in windows and apply a drive letter).
  • CoenBrasser
    CoenBrasser Member Posts: 5

    Tinkerer

    Hey Risc, I haven't had a chance to unpack the laptop yet since I'm still abroad.

    In a week or two, I can finally get my hands on it, I'll keep you posted if I had a chance to play with it!
    And please, if you have it before I do, keep me posted on what you discovered!
  • Risc
    Risc Member Posts: 2 New User
    I probably won't do it for another week or so mysellf (depending on shipping times for the new ssd) but if I get to it before you then I'll definitely let you know!
  • CoenBrasser
    CoenBrasser Member Posts: 5

    Tinkerer

    Well, I gave it a go, and it worked like a charm.

    I added a secondary m2.SSD, I bought the Samsung 970 EVO Plus 2TB, and there was a slot open for it.
    https://www.samsung.com/us/computing/memory-storage/solid-state-drives/ssd-970-evo-plus-nvme-m-2-2-tb-mz-v7s2t0b-am/

    The disassembly was quick, comfortable with only a bit of force while wiggling the top off.
    I used this video as a reference and only needed to disassemble the top, the wire over the SSD heatsink, and the heatsink itself.
    https://www.youtube.com/watch?v=QPQ23WbT3cM

  • @CoenBrasser I'm glad you were able to install successfully.
