No image Acer Aspire 5560G

Tzr1

Hello, I have an Aspire 5560G with parameters

AMD A8-3500M

8GB RAM

750GB

My colleague "computer scientist" switched my attention to the dedicated card which is damaged, everything is ok, how to change to integrated as there is no picture? The HDMI and VGA also have no image checked on Acer and BenQ monitors

IronFly

graphic cards, normally, are soldered on the motherboard, so you can't change it.

Tzr1

I am talking about a hardware change of the graphics card in a bios to the integrated one

JackE

Since the discrete card is damaged, your BIOS may already be defaulting to the integrated card. Have you tried to turn the TV or screen on with the Fn+F5 or Fn+F6 toggle key combinations? Jack E/NJ

Tzr1

Unfortunately, it does not work, are there any other ways?

IronFly

how did your friend troubleshoot to an only "integrated card" failure?
if you don't get any image from boot, can be also a corrupted BIOS.

Tzr1

turned off the computer, went into bios f2 and from Graphic Mode with integrated switched to Switchable and f12 to save the changes the computer turned off and turned on the lack of image

IronFly

ok, so you can try a BIOS CMOS reset or load default, even without seeing the screen.

maybe you have to try it a bunch of times but...
power on and press F2 to enter BIOS, wait 20-30 seconds and then press F9, press enter, wait 10 seconds and then press F10 and press enter

check if it's able to reboot and have a screen image.

Tzr1

No image and end

IronFly

last try, CMOS reset, taking CMOS battery apart:

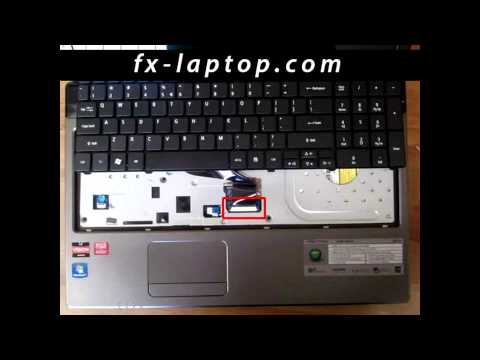

https://youtu.be/9xxCRfnfpzU?t=1m46s

you need to open the bottom cover of your laptop and pull out the CMOS battery and the main battery, let it there for 1hour and then put everything back and try to boot.

Tzr1

Power on 0 reactions in LCD

IronFly

no other ideas.
