Travelmate Spin B311R-32 Daughter board part number

Options
CTMKW
CTMKW Member Posts: 5 New User
edited July 18 in TravelMate and Extensa

I recently picked up a thrown away B3 but its missing the daughter board with the usb interface and micro SD card reader and I need a replacement and also need to connect the power button to the motherboard because the connector is missing.

Best Answers

  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    Answer ✓

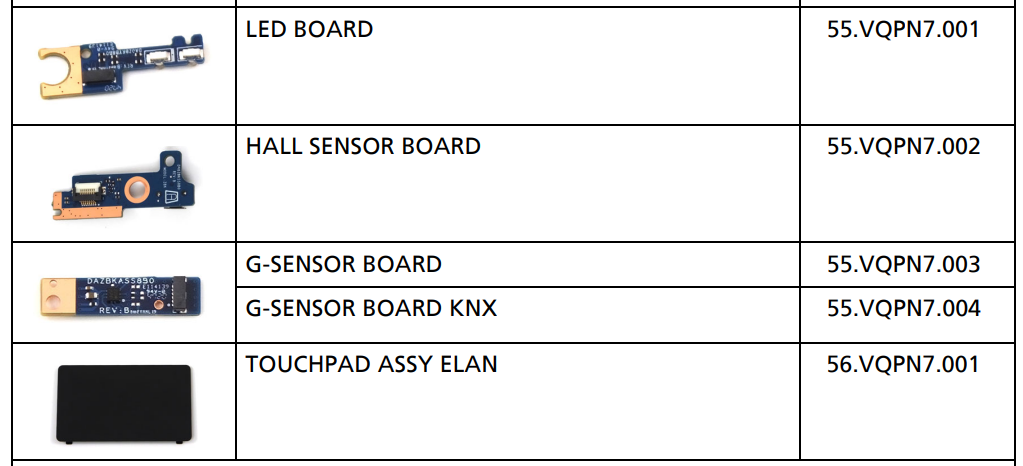

    These are all the IO boards for the TravelMate B311-32 laptop. Good luck.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    edited July 19 Answer ✓

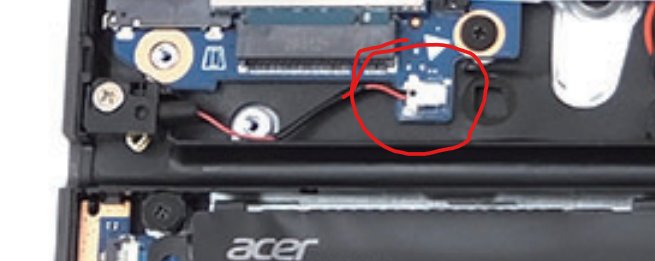

    Below is the power button assembly for this laptop that is on the right side of the laptop, its a switch that connects to a plug that has a + & - pins, get a small metal screwdriver and short the +&- pins which should power the laptop ON. Good luck and hope all this helps you out further.

    image.png image.png

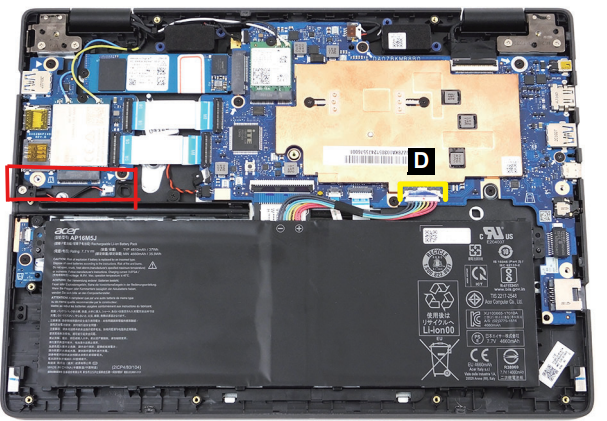

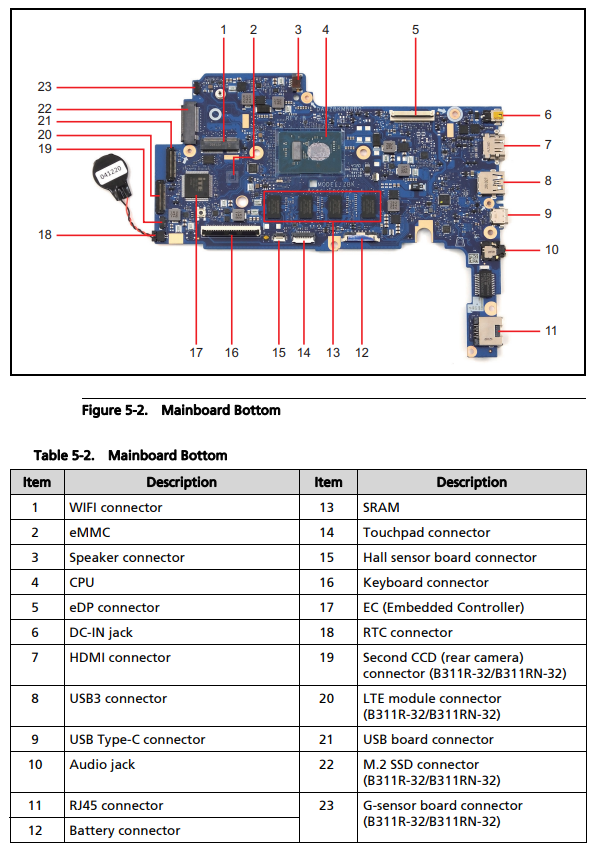

    This is the TravelMate Spin B311R-3 mainboard layout


    Here are some additional boards that this laptop has that might be helpful


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    Answer ✓

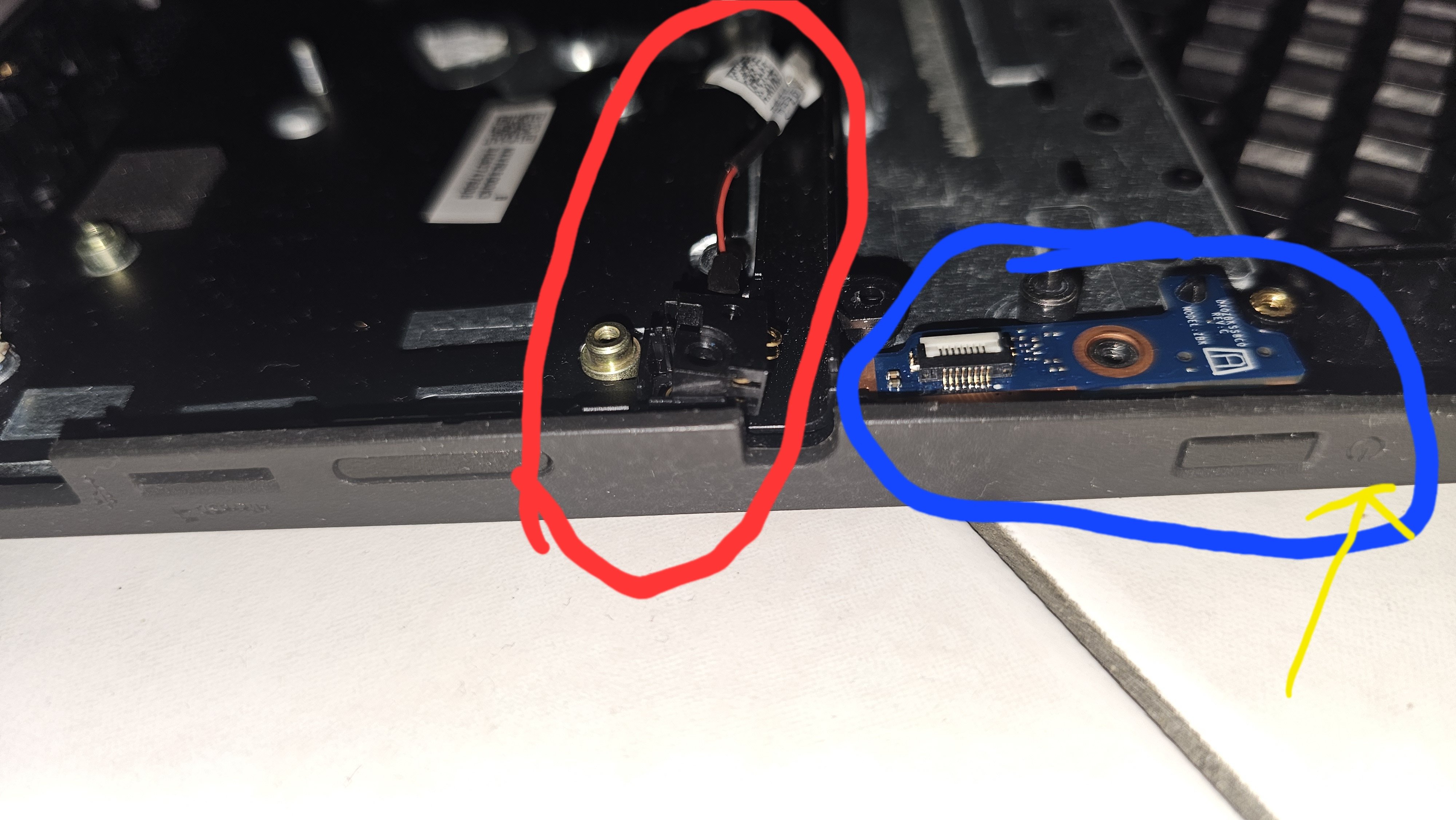

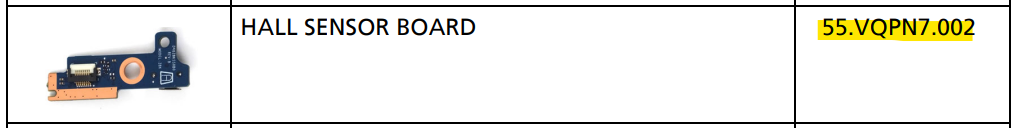

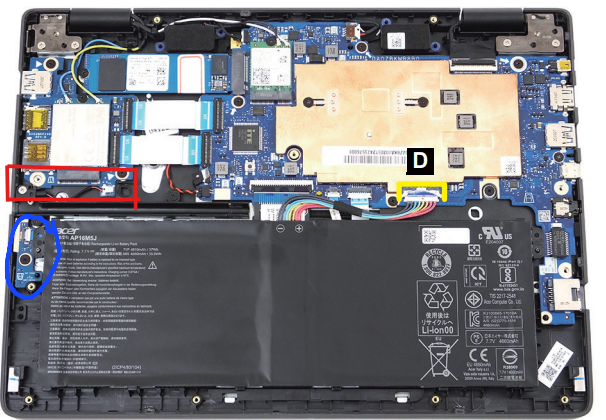

    The red circled area that I've shown above, is the power On/Off right side switch of your TravelMate laptop and your blue circled part, is the Hall Sensor Board as I've shown you above and below here, its impossible that the part below is the power switch, the stylus pen fits into the space below the red circled area, and if your TravelMate laptop has the stylus pen charging feature, it will have the charging circuitries also to charge the stylus pen (which is not shown above). Good luck.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

Answers

  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    Answer ✓

    These are all the IO boards for the TravelMate B311-32 laptop. Good luck.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

  • CTMKW
    CTMKW Member Posts: 5 New User

    Thank you so much for your help but could I also know where the powerbutton connector is and which pins have to be shorted to startup the board? Thank you!

  • CTMKW
    CTMKW Member Posts: 5 New User

    I need to connect DA0ZBKMB8C1 (MB) to DA0ZBKSS8CQ (PWR BUTTON) but I have no clue what connector to use either.

  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    edited July 19 Answer ✓

    Below is the power button assembly for this laptop that is on the right side of the laptop, its a switch that connects to a plug that has a + & - pins, get a small metal screwdriver and short the +&- pins which should power the laptop ON. Good luck and hope all this helps you out further.

    image.png image.png

    This is the TravelMate Spin B311R-3 mainboard layout


    Here are some additional boards that this laptop has that might be helpful


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

  • CTMKW
    CTMKW Member Posts: 5 New User

    Thank you for giving me a diagram of the motherboard. However, on my unit, the part you pointed out is just the charger for the stylus as it is only connected to the metal pins in the stylus port. The power button (I circled the board in blue) has a 8 pin connector on it.

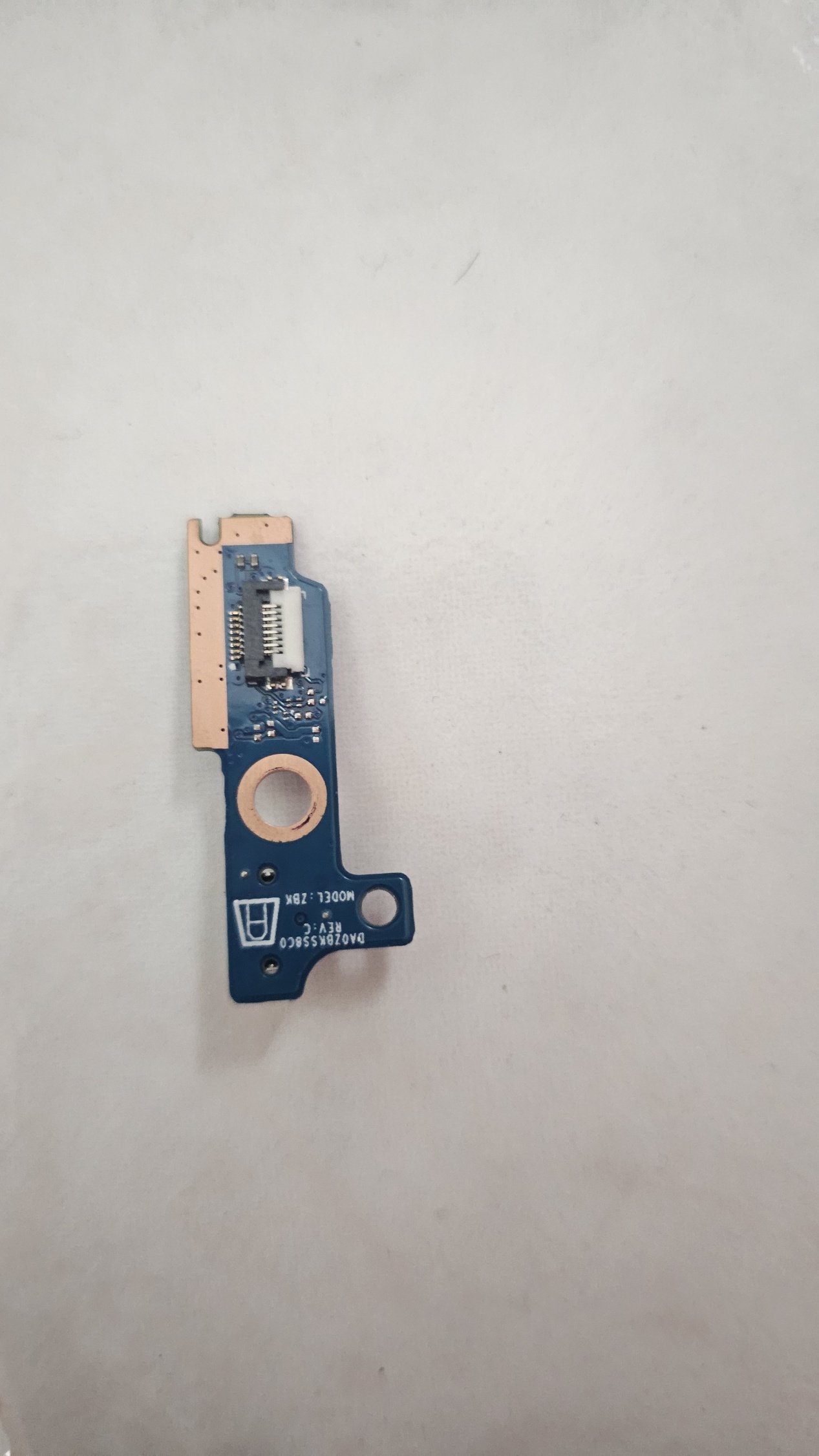

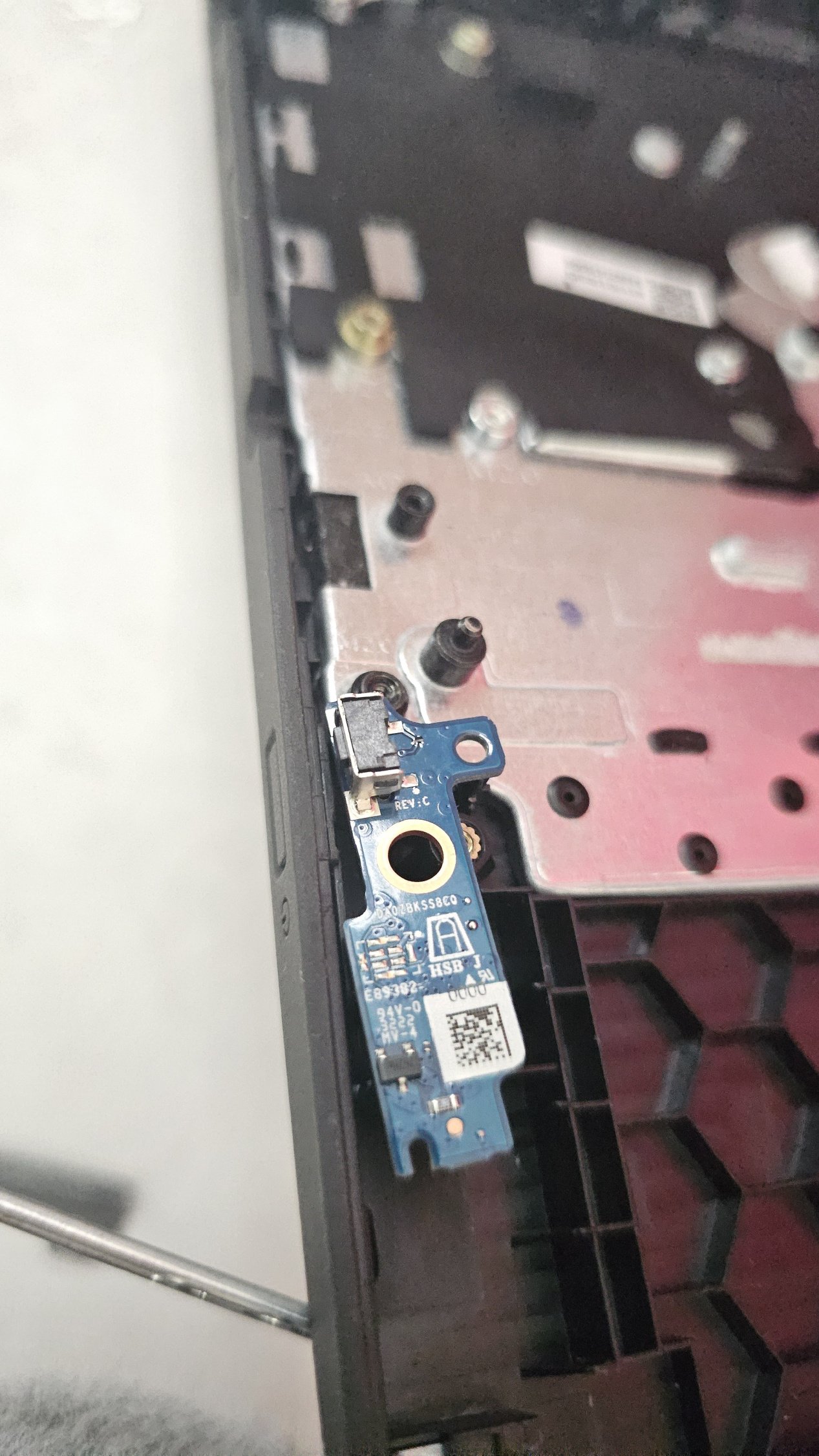

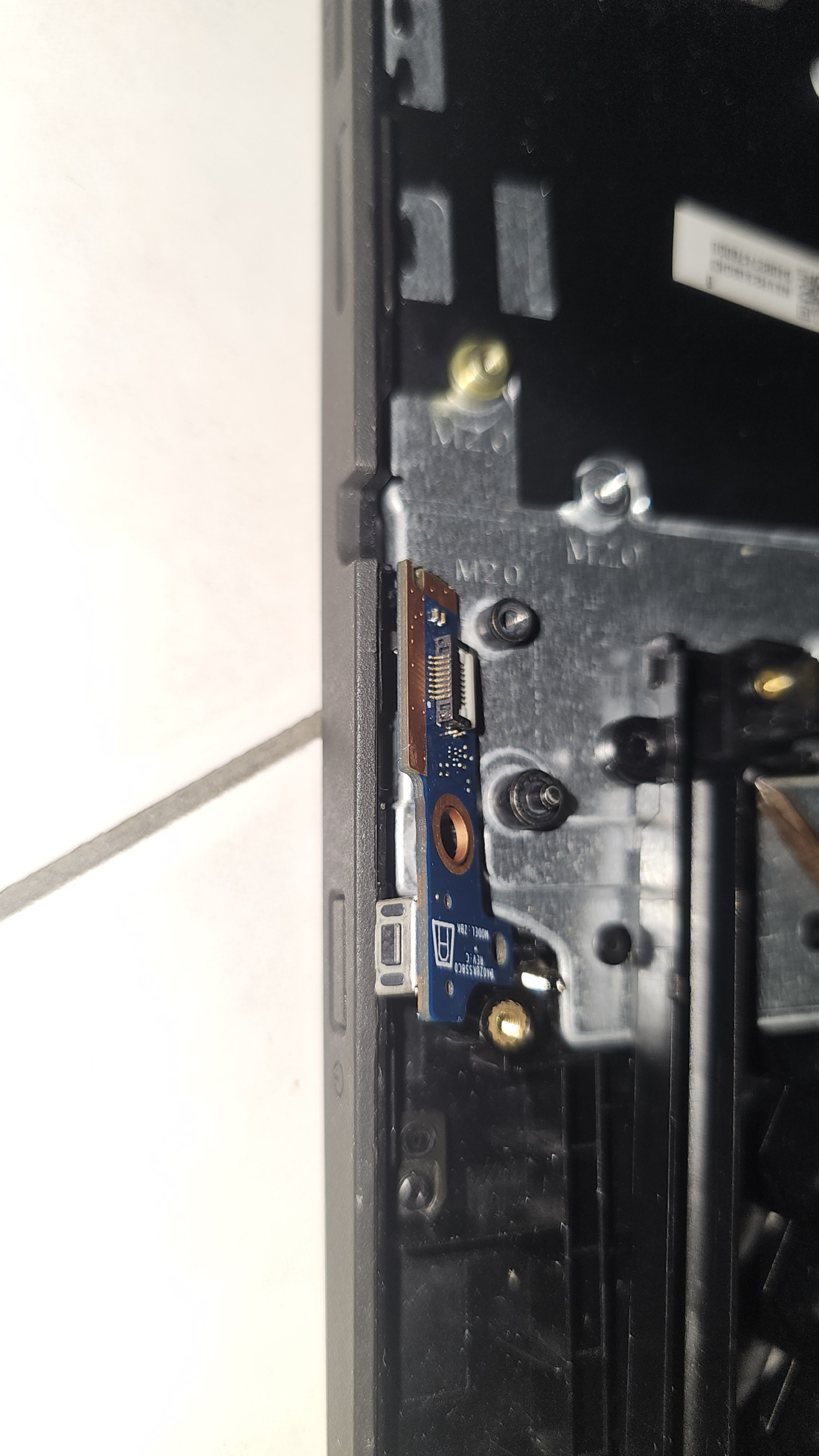

    1000253712.png 1000253713.jpg 1000253714.jpg
  • StevenGen
    StevenGen ACE Posts: 14,913 Trailblazer
    Answer ✓

    The red circled area that I've shown above, is the power On/Off right side switch of your TravelMate laptop and your blue circled part, is the Hall Sensor Board as I've shown you above and below here, its impossible that the part below is the power switch, the stylus pen fits into the space below the red circled area, and if your TravelMate laptop has the stylus pen charging feature, it will have the charging circuitries also to charge the stylus pen (which is not shown above). Good luck.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

  • CTMKW
    CTMKW Member Posts: 5 New User

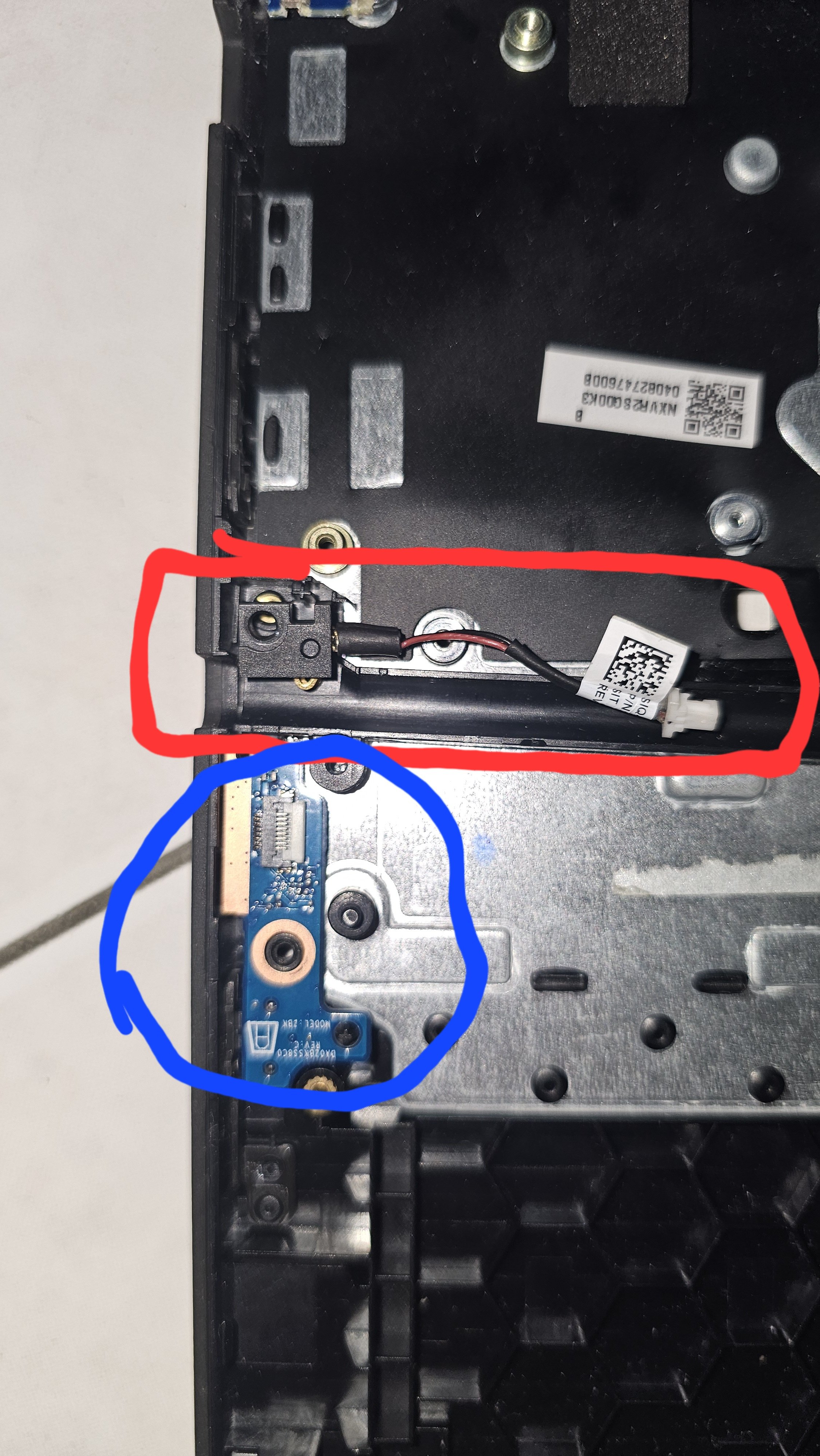

    1000253960.jpg 1000253962.jpg 1000253965.jpg 1000253966.jpg

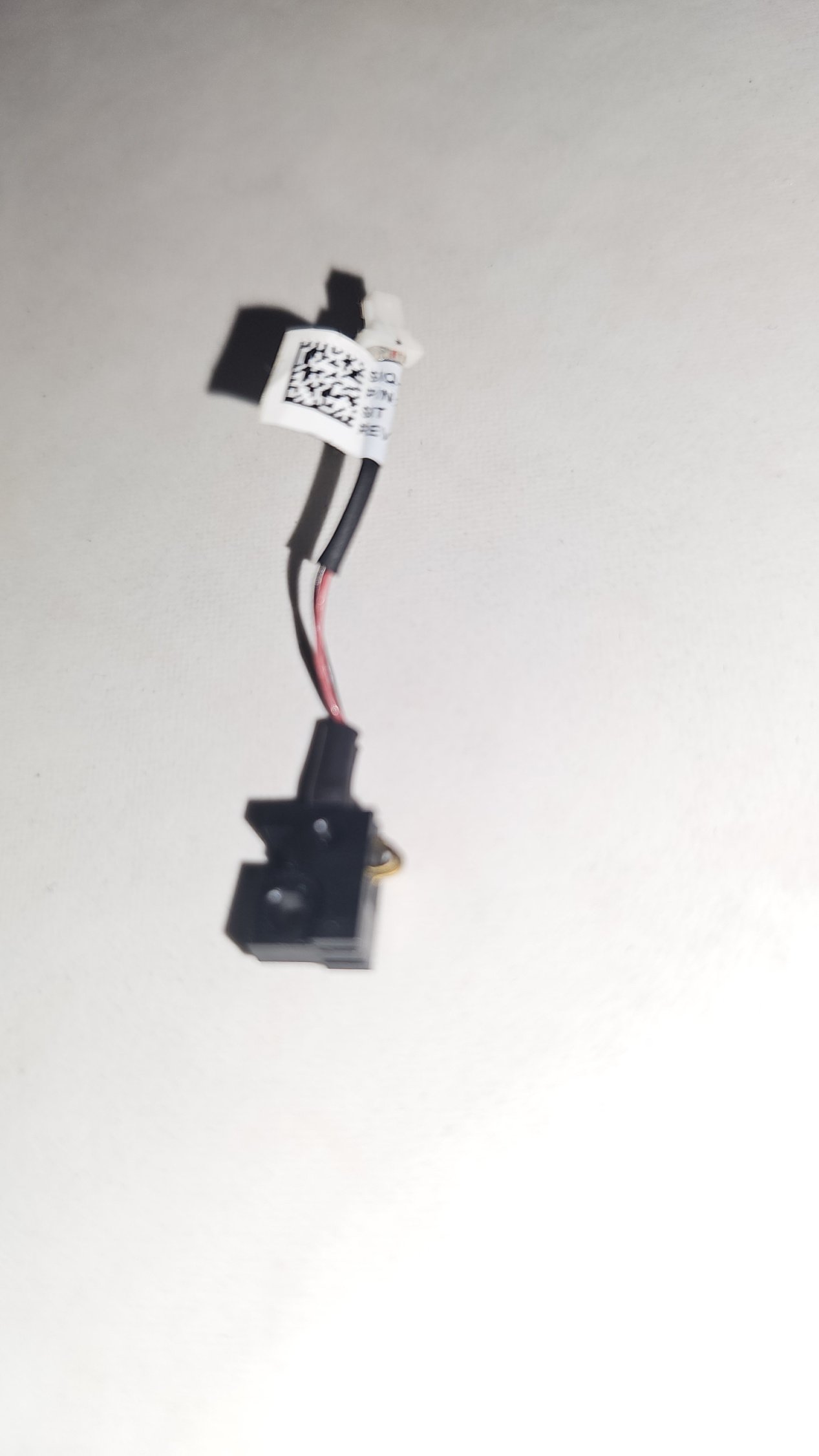

    This is what my laptop looks like
