A315-54-57VU Backlit keyboard upgrade support ?

Options
cakgo1530
cakgo1530 Member Posts: 14

Tinkerer

edited July 6 in Aspire Laptops

Hello,

I wanted to ask if it's possible to upgrade the A315-54-57VU's keyboard to a backlit one.

Best Answer

  • StevenGen
    StevenGen ACE Posts: 14,801 Trailblazer
    edited July 6 Answer ✓

    No, the Aspire A315-54-57VU mainboard does not have a Keyboard backlight FFC plug so that you can fit a keyboard with a backlight. Good luck and hope this helps.

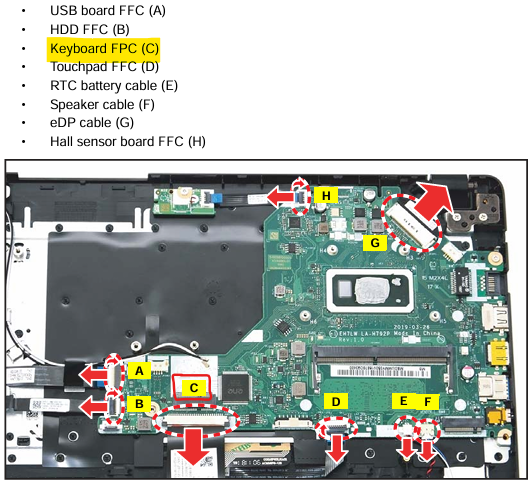

    This is the Aspire A315-54 laptop without its back cover, showing mainboard and all its plugs. To be able to have and upgrade to an RGB keyboard you need a Keyboard backlight FFC plug which this latop doesn't have.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

Answers

  • StevenGen
    StevenGen ACE Posts: 14,801 Trailblazer
    edited July 6 Answer ✓

    No, the Aspire A315-54-57VU mainboard does not have a Keyboard backlight FFC plug so that you can fit a keyboard with a backlight. Good luck and hope this helps.

    This is the Aspire A315-54 laptop without its back cover, showing mainboard and all its plugs. To be able to have and upgrade to an RGB keyboard you need a Keyboard backlight FFC plug which this latop doesn't have.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍
