Need Replacement motherboard for Acer Predator Helios 300 PH315-53-71GC, can't power on

Options
Skylarking
Skylarking Member Posts: 1 New User
edited June 16 in Predator Laptops

I need a replacement motherboard/mainboard for my laptop but as I can't turn it on, I am unable to download software on it to see which model I need. My laptops model number is N20C3. The model is PH315-53-71GC. Please let me know if you need any more information.

[Edited the thread to add model number to the title]

Best Answer

  • StevenGen
    StevenGen ACE Posts: 14,860 Trailblazer
    edited June 17 Answer ✓

    Your Predator PH315-53-71GC is a 2021 released laptop and has a special fitted lower spec NVidia RTX2060 gpu which the other PH315-53 laptops didn't have, but your PH315-53 mainboard should not be fried and if this laptop cant be powered on, it could be fixed by an experienced technician, first check for faulty ram or the main power rail or even the battery could be causing the laptop not powering on and if its faulty.

    This is the exact spec of your Predator PH315-53-71GC which must have been an early model as all the Acer listed service guide boards have an NVidia RTX30xx gpu's.

    • CPU - i7-10750H
    • GPU - GeForce RTX™ 2060 6GB GDDR6
    • RAM - 16GB DDR4-3200MT/s CL22
    • SSD M.2 - is a PCIe 3 x4 type drive @ slot SSD1 boot drive.
    • Adapter - 230W max adapter
    • Battery - 3720mAh 4S1P AP18E7M 210x72x8.5(mm) AP18E 15.4V Polymer FW4.23

    I suggest that you send your laptop to a technician near you and have them analyse your laptops mainboard completely as it will be allot cheaper and could be a simple mosfet or capacitor fix. The only time when you need to replace a mainboard is if its cpu is fried or the NVidia gpu is fried and you want this desktop for gaming or editing for a business, as and otherwise for normal use, your laptop will function on its cpu graphics.

    Be aware that a new PH315-53 mainboard with the i7-10750H cpu and the lowest spec RTX3060 gpu that is available on the web, which is the Acer part #: NB.QAU11.003 with the i7-10750H cpu and the RTX3050 gpu, can cost you a humongous $2,691.09 USD, but there could be cheaper boards around, so look them up on the web and see if they are available for a cheaper price, as you have all the details and Acer part numbers below. Good luck and hope this helps you out.

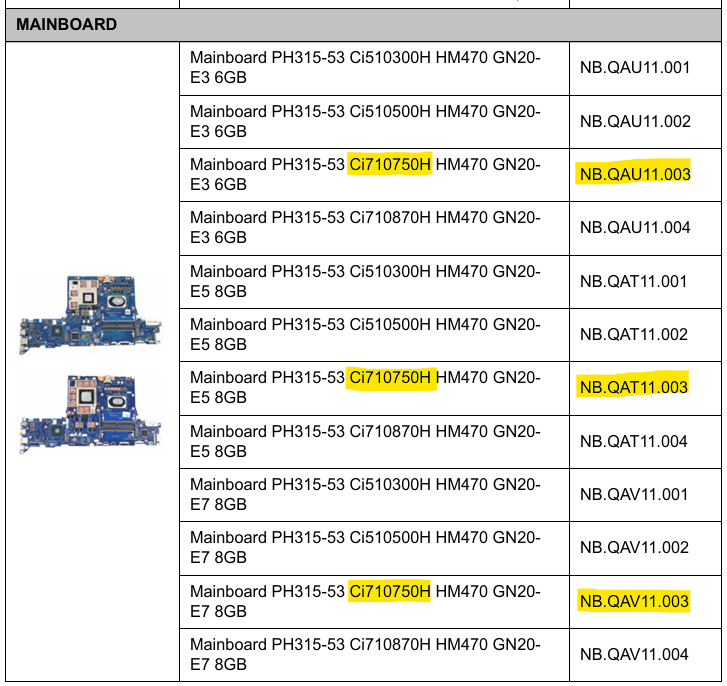

    The highlighted mainboards below are the boards with the same i7-10750H cpu's as your Predator Helios PH315-53-71GC does not have the same RTX2060 gpu, as your exact board is not listed by Acer in the PH315-53 service guide mainboards below.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍

Answers

  • StevenGen
    StevenGen ACE Posts: 14,860 Trailblazer
    edited June 17 Answer ✓

    Your Predator PH315-53-71GC is a 2021 released laptop and has a special fitted lower spec NVidia RTX2060 gpu which the other PH315-53 laptops didn't have, but your PH315-53 mainboard should not be fried and if this laptop cant be powered on, it could be fixed by an experienced technician, first check for faulty ram or the main power rail or even the battery could be causing the laptop not powering on and if its faulty.

    This is the exact spec of your Predator PH315-53-71GC which must have been an early model as all the Acer listed service guide boards have an NVidia RTX30xx gpu's.

    • CPU - i7-10750H
    • GPU - GeForce RTX™ 2060 6GB GDDR6
    • RAM - 16GB DDR4-3200MT/s CL22
    • SSD M.2 - is a PCIe 3 x4 type drive @ slot SSD1 boot drive.
    • Adapter - 230W max adapter
    • Battery - 3720mAh 4S1P AP18E7M 210x72x8.5(mm) AP18E 15.4V Polymer FW4.23

    I suggest that you send your laptop to a technician near you and have them analyse your laptops mainboard completely as it will be allot cheaper and could be a simple mosfet or capacitor fix. The only time when you need to replace a mainboard is if its cpu is fried or the NVidia gpu is fried and you want this desktop for gaming or editing for a business, as and otherwise for normal use, your laptop will function on its cpu graphics.

    Be aware that a new PH315-53 mainboard with the i7-10750H cpu and the lowest spec RTX3060 gpu that is available on the web, which is the Acer part #: NB.QAU11.003 with the i7-10750H cpu and the RTX3050 gpu, can cost you a humongous $2,691.09 USD, but there could be cheaper boards around, so look them up on the web and see if they are available for a cheaper price, as you have all the details and Acer part numbers below. Good luck and hope this helps you out.

    The highlighted mainboards below are the boards with the same i7-10750H cpu's as your Predator Helios PH315-53-71GC does not have the same RTX2060 gpu, as your exact board is not listed by Acer in the PH315-53 service guide mainboards below.


    If this answers your question and solved your query please "Click on Yes" or "Click on Like" if you find my answer useful👍
