Acer Nitro 5 AN515-57 Won’t Charge (or) Turn On After Low Battery

I have an Acer Nitro 5 AN515-57 laptop. The problem started earlier when I was using it — a low battery warning popped up. When I plugged in the charger, it didn’t start charging. After a while, the laptop suddenly turned off on its own. I tried charging it again, but the charging light just kept blinking, and the laptop wouldn’t turn on. I then tried pressing the power button for about 10–20 seconds, and the blinking charging light disappeared. After that, the laptop still wouldn’t charge — even when I plugged the charger back in, the charging light no longer lit up.

[Edited the thread to add model number to the title]

Accepted answers

Dabed

Please help me how to fix my laptop

All comments

Dabed

Please help me how to fix my laptop

Olivia_W

Step 1: Do a Power Reset (Discharge Residual Power)

This often fixes a “frozen” power circuit.

Unplug everything — charger, mouse, external drives, etc.
Flip the laptop over and look for a small battery pinhole reset button (should be near the bottom).
Use a paperclip or SIM pin to press and hold that button for 5–10 seconds.
Leave the laptop alone for a few minutes.
Then plug the charger back in (without turning it on yet) and check if the charging light comes on.

If the light comes back, let it charge for a few minutes before turning it on.

🔋 Step 2: Check Charger and Port

If there’s still no charging light, try this:

Inspect the charger: Make sure the light on the charger brick (if it has one) is on.
Wiggle the connector slightly — if it flickers even for a second, the DC jack might be loose.
Try a different wall socket just to rule out power source issues.
If you have access to another compatible Acer charger, try that — the original one might’ve failed.

⚙️ Step 3: Try Booting Without the Battery (if removable)

The Nitro 5 battery isn’t easily removable, but if you’re comfortable opening the bottom panel:

Disconnect the battery cable from the motherboard.
Plug the charger in (battery still disconnected).
Try powering on the laptop.

If it turns on, that means your battery is the culprit (either dead or shorted).

🧠 Step 4: CMOS Reset (if nothing else works)

This clears weird firmware-level charge issues.

If you open the back panel:

Unplug the main battery and the CMOS battery (small coin-sized battery).
Hold the power button for 30 seconds.
Reconnect everything and try again.

🚨 If Still Dead:

If no charging light and no power even after all that:

The charging IC or power MOSFETs on the motherboard may be damaged (especially if it shut off during a low battery event).
You’ll likely need Acer service or a board-level repair tech to replace the power circuit.

Puraw

Hi Dabed

A few points based on your description:

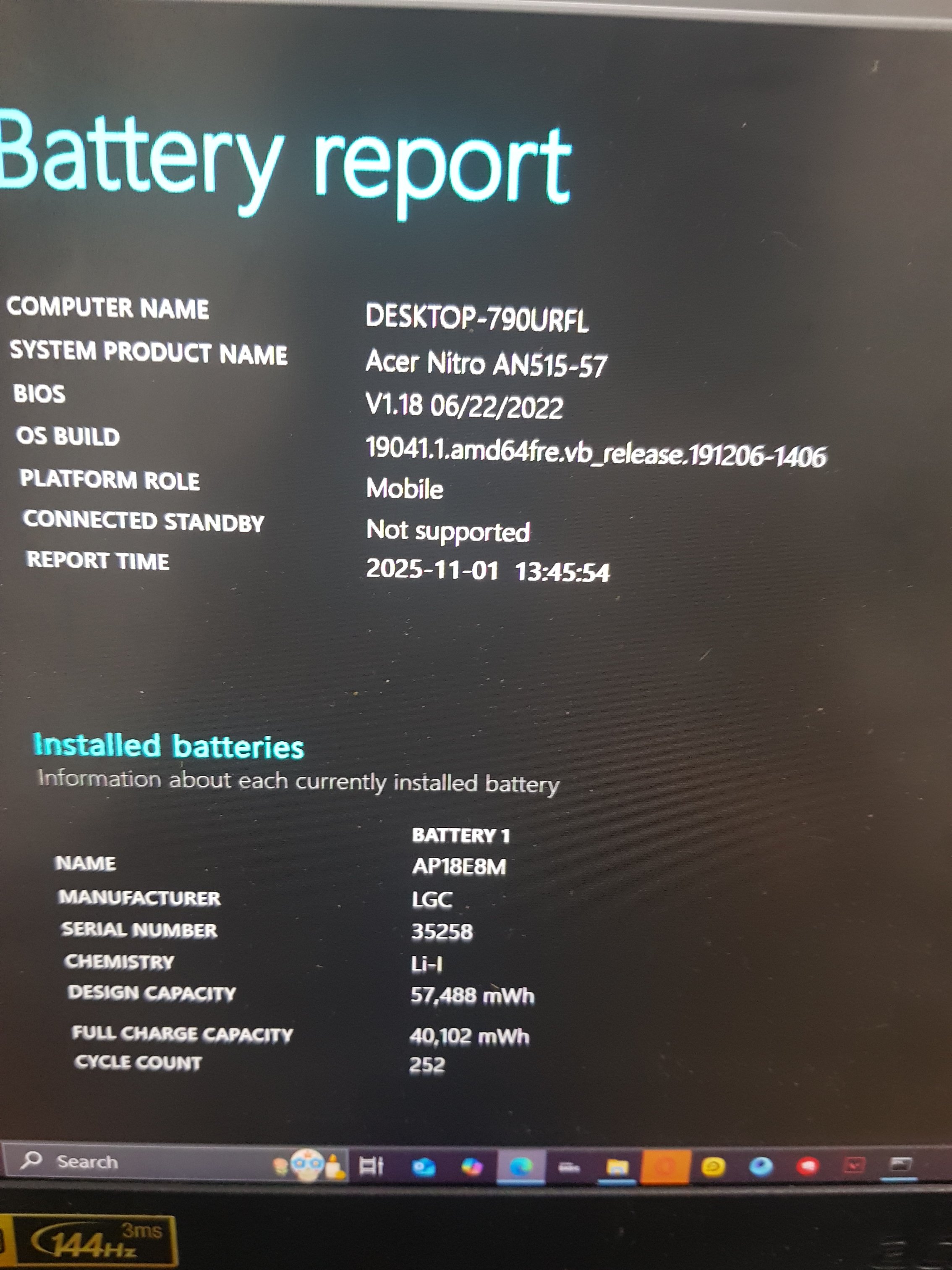

A 4‑year‑old battery showing around 30% wear is normal and within expectations.
Your BIOS is outdated — please update to version 1.20 (dated 2023/09/13) from Acer’s support page for the Nitro 5 AN515‑57.
If the laptop still refuses to boot, you can attempt a CMOS reset. Be sure to follow these steps carefully:

Power drain + CMOS reset procedure

Open the back cover and disconnect the main battery cable from the motherboard.
Locate the CMOS module (two twisted red/black wires under the battery).
Remove the coin cell battery from the capsule.
Briefly short the +/- terminals inside the capsule for ~2 seconds with a bent paperclip.
Reinsert the coin cell with the + sign facing up, then close the capsule.
Press and hold the power button for 10–15 seconds.
Reconnect the main battery cable, close the laptop, plug in the adapter, and try to boot.

This sequence ensures both a full power drain and a CMOS reset, which often resolves no‑boot or charging‑light issues after battery/EC anomalies.

Note: You may want to start a new thread, since you marked your own question as the answer. On an accepted post, other members are unlikely to respond
