2.5/3.5 SSd drive compatible mounting bracket for AIO pc Aspire C27-1800 27" All-in-One PC

rakka89

computer issue :- ACER Aspire C27-1800 27" All-in-One PC - Intel® Core™ i5, 512 GB SSD, Black

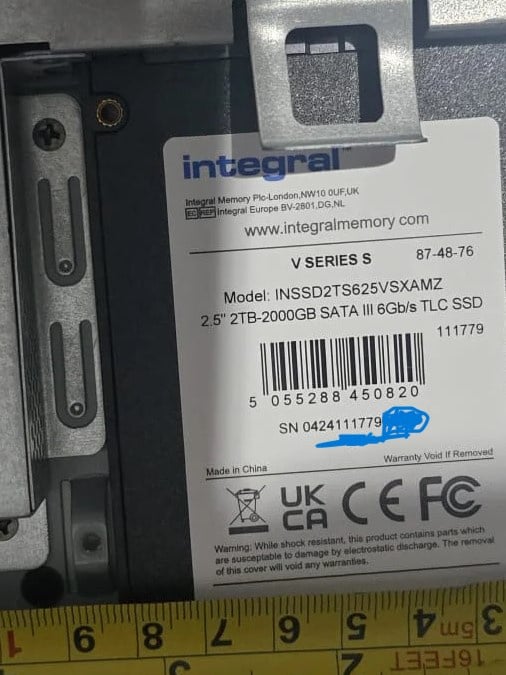

For some time my 512gb nvme ssd was getting filled up really quick. I decided to take the plunge and add a 2tb SSD drive to the pc into the vacant spare 2.5 slot on the mother board.

The problem is I can’t seem to find any suitable mounting bracket that fits in that area which is deeply frustrating and a waste of money as I have bought several different bracket types from different manufacturers and nothing works in any orientation.

Eventually, I have improvised with some soft foam (the type that drives are packaged with) and double sided tape to hold the new ssd drive in place. This improvisation works but I would like a better solution if possible.

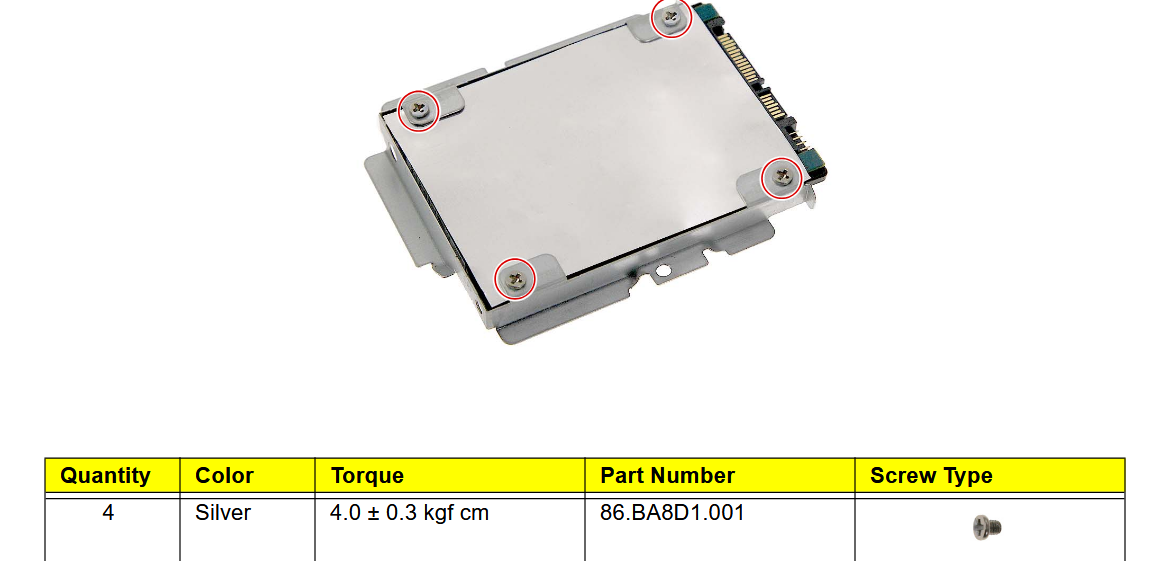

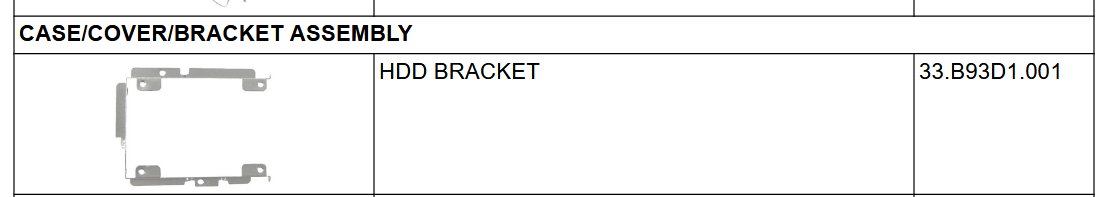

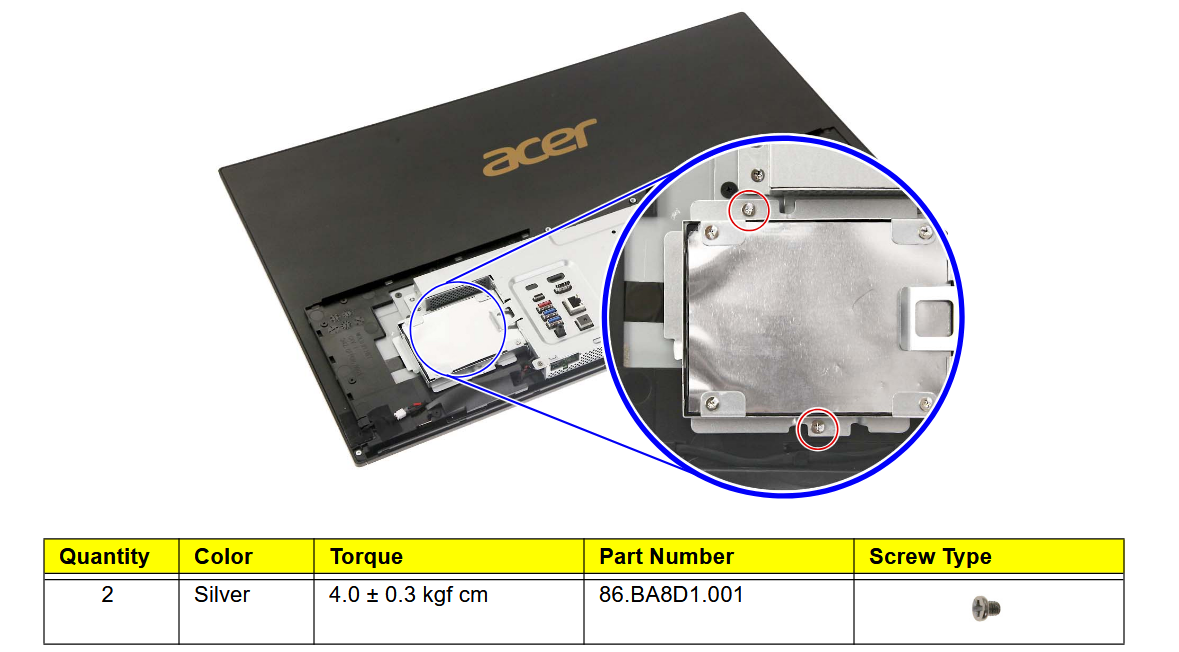

My question and hope is that, as Acer did make a space in this AIO and provide screwholes for a mounting bracket/SSD, if anyone has encountered this and solved it, can you please, if you know, what compatible mounting ssd 2.5 / 3.5 bracket will work ?

many kind thanks in advance for your time in reading my question.

pic 2 of 3.jpg

pic 3 of 3.jpg

[Edited the thread to add model number to the title]

rakka89

for some reason this picture did not upload

[Edited the content to hide sensitive information]
