Ram slot which only shows 4 GB occupied. Aspire AV15-51 Desktop – C148 JGO

Options
hansjajo
hansjajo Member Posts: 5 New User

Took the back off and Examined the Ram slot which only shows 4 GB occupied. In system it shows 8 GB Ram. I understand my laptop (still going well) has part of its Ram soldered in place and not accessible. My question is Does this mean I have 4GB soldered in with the 4GB SO-DIMM making up the total 8GB and would changing the 4GB DIMM to 8GB work. Or best leave things alone.

I changed the thermal paste which was still soft and fine but back was off.

[Edited the thread to add issue detail]

Best Answers

  • Diya1811
    Diya1811 Ally Posts: 925
    edited August 12 Answer ✓

    @hansjajo

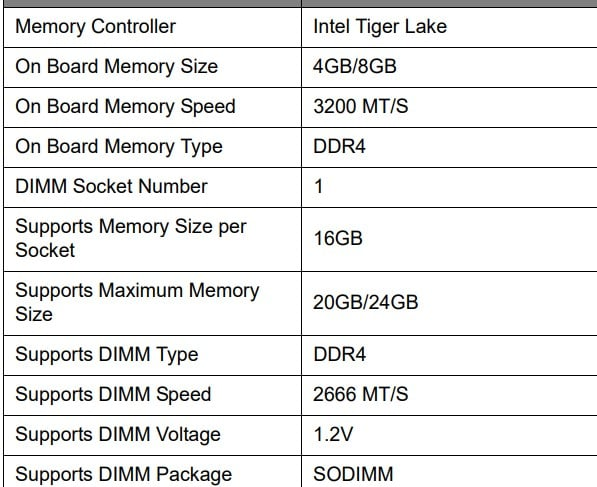

    Your laptop has a total of 8GB RAM, consisting of 4GB soldered to the motherboard, which is non-removable, and a 4GB SO-DIMM module that can be removed and upgraded. You can replace the 4GB SO-DIMM with an 8GB or even a 16GB module. This upgrade would increase your total RAM to 12GB or 20GB, offering better multitasking capabilities and overall performance improvements. It should be 2666mhz, DDR4, 1.2V

    Click on "Yes" if it answers your question or Click on "Like" if you find my answer useful

  • Jack22
    Jack22 ACE Posts: 4,639 Pathfinder
    Answer ✓

    The RAM you have mentioned matches the specs given by Diya1811, so it should work.

    Click on 'Yes' if the comment answers your question!
  • hansjajo
    hansjajo Member Posts: 5 New User
    Answer ✓

    Thanks for input. Will order.

Answers

  • hansjajo
    hansjajo Member Posts: 5 New User

    I may have answered my own question 1 slot but 2 banks of 4GB = 8G

    and if correct can I go to 16GB.

  • Diya1811
    Diya1811 Ally Posts: 925
    edited August 12 Answer ✓

    @hansjajo

    Your laptop has a total of 8GB RAM, consisting of 4GB soldered to the motherboard, which is non-removable, and a 4GB SO-DIMM module that can be removed and upgraded. You can replace the 4GB SO-DIMM with an 8GB or even a 16GB module. This upgrade would increase your total RAM to 12GB or 20GB, offering better multitasking capabilities and overall performance improvements. It should be 2666mhz, DDR4, 1.2V

    Click on "Yes" if it answers your question or Click on "Like" if you find my answer useful

  • Diya1811
    Diya1811 Ally Posts: 925

    @hansjajo


    Click on "Yes" if it answers your question or Click on "Like" if you find my answer useful

  • hansjajo
    hansjajo Member Posts: 5 New User

    Thanks for the information this is a great help. I will go for the 16 Gb Upgrade Making 20 GB total.

    I was going down the wrong road but now I will order correctly.

  • hansjajo
    hansjajo Member Posts: 5 New User

    Still need a bit of help is this ok

    DDR4Memory RAM 16GB 1.2V 260pin 3200MHz 2666MHz 2400MHz PC4 for NotebookSodimm Memory

    If please advise.

  • Jack22
    Jack22 ACE Posts: 4,639 Pathfinder
    Answer ✓

    The RAM you have mentioned matches the specs given by Diya1811, so it should work.

    Click on 'Yes' if the comment answers your question!
  • hansjajo
    hansjajo Member Posts: 5 New User
    Answer ✓

    Thanks for input. Will order.
