How Can I Upgrade My RAM In Acer Aspire A314-32-C83Q

Dail89

In Task Manager It Shows That My Factor Form Or Form Factor Is DIMM And Slot Used Is 1 Of 1 But My Laptop Has 1 Slot For Sodimm

Commodore_1995#

Can you send a screenshot and inform the windows version? On my notebook, sodimm appears, see:

Dail89

This Is What My Laptop Shows

Commodore_1995#

I may be mistaken, but according to the service manual, your model uses an onboard memory:

Dail89

My Laptop Uses DDR4

StevenGen

Your Aspire A314-32-C83Q can use a max mem of 8GB total, it has 1 slot (1 bank of 1) and comes with a standard mem of either 2GB or 4GB removable. You can upgrade this ram with a 1x stick of a max speed of 8GB DDR4-3200 SODIMM or a 1x 8GB DDR4-2666 SODIMM or a 1x 8GB DDR4-2400 SODIMM (which is the standard ram that you have) seeing form your "Task Manager" caption that states: 1x 4GB DDR4-2400 SODIMM installed you can take that out and replace it with either a 1x 8GB DDR4-2666 SODIMM or the fastest ram that the Aspire A314-32-C83Q can handle which is the 1x 8GB DDR4-3200 SODIMM, simple.

DDR4-RAM that fits the Aspire A314-32-C83Q
If you want to check all memory details do this:

1. Open Start.

2. Type Command Prompt, right-click the top result and select the Run as administrator option.

3. Type the following command to view all the memory details and press Enter: wmic memorychip list full

4. Or to check your current mem speed (as Task Manager" is not really accurate) do as above but Enter: wmic memorychip get devicelocator, speed

Dail89

So I Need To Remove The Soldered RAM To Upgrade?

Dail89

How Do I Remove The RAM? There Is Nothing In The Sodimm Slot....So Do I Need To Remove The Soldered Or Installed RAM From The Inside?

Commodore_1995#

I obtained this information from the @StevenGen service manual. But it is possible that it is wrong. @Dail89 Ideally, you should check if there is a slot available here:

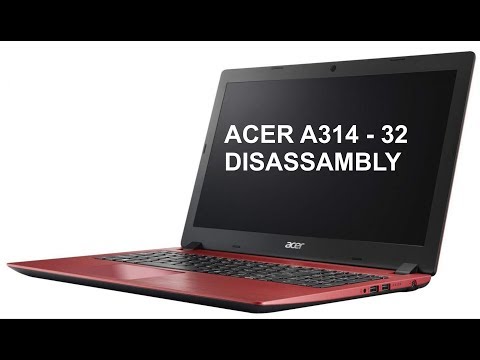

https://youtu.be/93KxDzTVlRQ

Dail89

egydiocoelho said:

I may be mistaken, but according to the service manual, your model uses an onboard memory:

My Laptop Uses DDR4

Your Aspire A314-32-C83Q can use a max mem of 8GB total, it has 1 slot (1 bank of 1) and comes with a standard mem of either 2GB or 4GB removable. You can upgrade this ram with a 1x stick of a max speed of 8GB DDR4-3200 SODIMM or a 1x 8GB DDR4-2666 SODIMM or a 1x 8GB DDR4-2400 SODIMM (which is the standard ram that you have) seeing form your "Task Manager" caption that states: 1x 4GB DDR4-2400 SODIMM installed you can take that out and replace it with either a 1x 8GB DDR4-2666 SODIMM or the fastest ram that the Aspire A314-32-C83Q can handle which is the 1x 8GB DDR4-3200 SODIMM, simple.

DDR4-RAM that fits the Aspire A314-32-C83Q
If you want to check all memory details do this:

1. Open Start.

2. Type Command Prompt, right-click the top result and select the Run as administrator option.

3. Type the following command to view all the memory details and press Enter: wmic memorychip list full

4. Or to check your current mem speed (as Task Manager" is not really accurate) do as above but Enter: wmic memorychip get devicelocator, speed

How Do I Remove The RAM? There Is Nothing In The Sodimm Slot....So Do I Need To Remove The Soldered-Installed-Onboard RAM From The Inside? Or Should I Buy A 4GB DDR4 SODIMM And Install It To The SODIMM Slot That Is Available And Unused To Make It 8GB RAM?

egydiocoelho said:

I obtained this information from the @StevenGen service manual. But it is possible that it is wrong. @Dail89 Ideally, you should check if there is a slot available here:

https://youtu.be/93KxDzTVlRQ

Yes There Is A Slot Available

Commodore_1995#

You cannot remove the onboard ram. You can instead add more ram memory by installing it in the respective slot. I just don't know what the limit is accepted by the slot.
