Installing A-DATA S11 Pro AGAMMIXS11P-256GT-C 256GB, M.2 2280, PCI-E x4, NVMe at f5-573g-51jl

GreyTV
GreyTV Member Posts: 8 New User
edited September 2023 in 2019 Archives
Hi, I have a f5-573g-51jl laptop. I bought for it the SSD A-DATA S11 Pro AGAMMIXS11P-256GT-C 256GB, M.2 2280, PCI-E x4, NVMe, but the SSD is not displayed in the system.
Also on the motherboard was not mounting under the SSD.
Screenshots in attachment.
Please, help me.



Best Answer

  • Commodore_1995#
    Commodore_1995# ACE Posts: 98,327 Trailblazer
    Answer ✓
    Can you check this?
    Remember that sata mode must be in uefi and you should create a password in setsupervisorpassword to disable secure boot. Then press shift + f10 inside the windows installation and enter these commands: diskpart, list disk, sel disk x, clean, convert gpt and then exit cmd and continue the installation!
    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)

Answers

  • Hello! Have you checked if ssd appears in the uefi information section?
    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)
  • GreyTV
    GreyTV Member Posts: 8 New User
    Test massage
  • GreyTV
    GreyTV Member Posts: 8 New User
    Hello! Have you checked if ssd appears in the uefi information section?
    I checked in both Legacy and UEFI, SSD is not displayed.
    I also found this information:

  • GreyTV
    GreyTV Member Posts: 8 New User
    Well, after the next build, I saw SSD in bios. But I do not see the hard drive. At the same time I managed to boot from HDD and mark up SSD already in the OS.

  • Is sata mode useful? Have you tried converting ssd to gpt so?

    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)
  • GreyTV
    GreyTV Member Posts: 8 New User

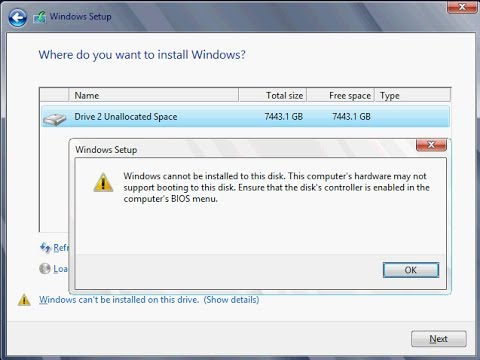

    New problem! Attempting to install a Windows operating system on this SSD results in an error: "Windows cannot be installed to this disk. This computer's hardware may not support booting to this disk. Ensure the disk's controller is enabled in the computer's BIOS menu."

    I tried to convert both to GPT and MBR.
    Also updated BIOS to version 1.27

    P.S.: Sorry for my bad English
  • Commodore_1995#
    Commodore_1995# ACE Posts: 98,327 Trailblazer
    Answer ✓
    Can you check this?
    Remember that sata mode must be in uefi and you should create a password in setsupervisorpassword to disable secure boot. Then press shift + f10 inside the windows installation and enter these commands: diskpart, list disk, sel disk x, clean, convert gpt and then exit cmd and continue the installation!
    Oi! Eu não sou sou a cortana! Mas estou aqui para ajudar! Hi! I'm not the cortana! But I'm here to help!
    Se você gostou da minha resposta, marque como solução clicando em sim! If you liked my answer, mark it as a solution by clicking on yes!
    Aceite somente a resposta que ajudou a solucionar o seu problema! Please accept only the response that helped to solve your problem!
    Detection tool click here to find the serial number or partnumber of your model!

                                                     egydiocoelho Trailblazer

    ProductKey clique aqui para descobrir o serial do windows! click here to discover the windows serial!
    Para usuários da comunidade inglesa, espanhola, francesa e alemã, usarei o google tradutor! :)
    For users of the English, Spanish, French and German community, I will be using google translator! :)
  • GreyTV
    GreyTV Member Posts: 8 New User
    Can you check this?
    Remember that sata mode must be in uefi and you should create a password in setsupervisorpassword to disable secure boot. Then press shift + f10 inside the windows installation and enter these commands: diskpart, list disk, sel disk x, clean, convert gpt and then exit cmd and continue the installation!

    "disable secure boot" - That helped! Thank you very much! Low-optional BIOS confuses me.... =)
  • You are welcome my friend!
